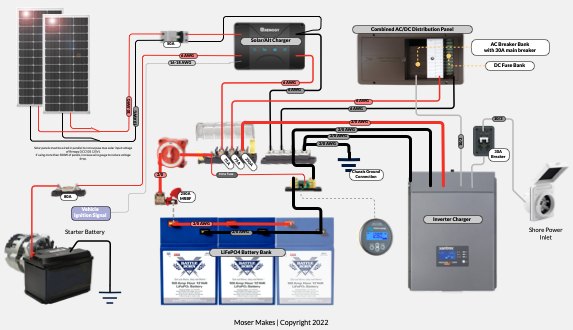

Camper Van Standard Electrical System

Capabilities

  • 200-300Ah Battery Bank

  • 2000W Inverter

  • up to 660W Solar Input

Benefits

  • Combined solar/alternator charger

  • Inverter Charger to generate AC power and Charge from shore power

  • Space saving components



Install Video

Parts List

Disclaimer: This page includes affiliate links, and Iā€™d really appreciate it if you used them! By purchasing items through my affiliate links, you help me continue to create and serve content. Thanks!

Note: the prices listed below were updated in May of 2024 but prices may fluctuate with time. Nonetheless, I thought it would be helpful to give the price along with the parts list to serve as an estimated material cost for the system. Also note that the most significant cost driver is the batteries. To reduce cost, shop around for different battery options or deals available.

Parts List

ItemLinkQuantityUnit PriceTotal Price
Storage
Batteries

Battle Born 100Ah LiFePO4

2$925$1850
Monitor

Victron BMV 712 (includes shunt)

1$158.95$158.95
Cutoff switch

Blue Sea Battery Switch

1$26.51$26.51
Terminal Fuse Holder

Blue Sea Terminal Fuse Holder

1$22.83$22.83
Combined Fuse Holder

MRBF Surface Mount Fuse Block

1$49.92$49.92
Negatvie Bus Bar

Pike 400A Bus Bar - Black

1$59.95$59.95

250A MRBF Fuse

2$18.45$36.9

75A MRBF Fuse

2$17.53$35.06
Solar and Alternator
Solar Panels

100W panels

3$73.99$221.97
Entry Gland

Solar Roof Entry Gland

1$9.99$9.99
Breaker/Disconnect

Solar Disconnect Breaker w/ Enclosure

1$24.99$24.99
Charge Controller

Renogy DCC50S Solar + Alt Charger

1$269.99$269.99
Fuse Holder

Blue Sea ANL Fuse Holder

1$25.7$25.7

80A ANL Fuse

1$20.73$20.73
AC Loads
Inverter Charger

Xantrex Freedom XC 2000

1$862.03$862.03

Inverter remote

1$78.29$78.29
AC Input Breaker

30A Blue Sea Main Breaker

1$95.59$95.59
Shore Power Inlet

30A Shore Power Port

1$22.99$22.99
Distribution
Distribution Panel

AC/DC Distribution Panel

1$98.01$98.01
DC Fuses

Blade Fuse Assortment

1$8.99$8.99
AC Breaker

30A Homeline Breaker (main)

1$$
AC Breaker

15 or 20 Breakers for branch circuits

$$
Cabling

2/0 AWG Red + Black 10'

1$95.83$95.83

2/0 AWG Black 15' (chassis ground)

1$76.67$76.67

6 AWG Red + Black 10'

1$32.64$32.64

6 AWG Red 20-30'

1$30.94$30.94

MC4 Extension 10 AWG 20'

1$30.99$30.99

Marine 10/3 10'

1$$
Connectors

2/0 5/16 Lugs - 15 pack

1$22.72$22.72

2/0 3/8" Lugs - 5 pack

1$11.21$11.21

6 AWG 5/16 Lugs - 10 pack

1$10.86$10.86

6 AWG 1/4 Lugs - 10 pack

1$10.86$10.86

Heat Shrink - 3/4" Red + Black

1$9.99$9.99

Heat Shrink - 1/2" Red + Black

1$8.99$8.99

Wire Ferrules

1$12.89$12.89
Total Price$4312.1

Previous
Previous

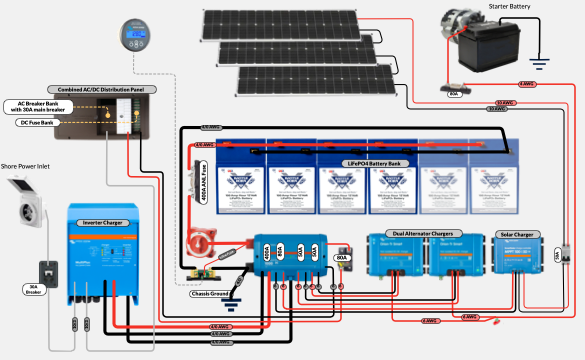

Camper Van High Powered Electrical System
